Machines

3-Axis CNC Machining Center:

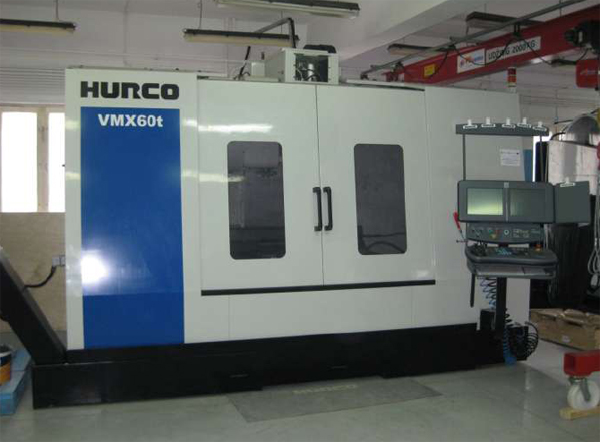

• HURCO VMX 60t
  • CNC WinMax;
  • Working area of: X 1525 mm, Y 660 mm, Z 610 mm;1300 kg;
  • 10-12 000 rpm.

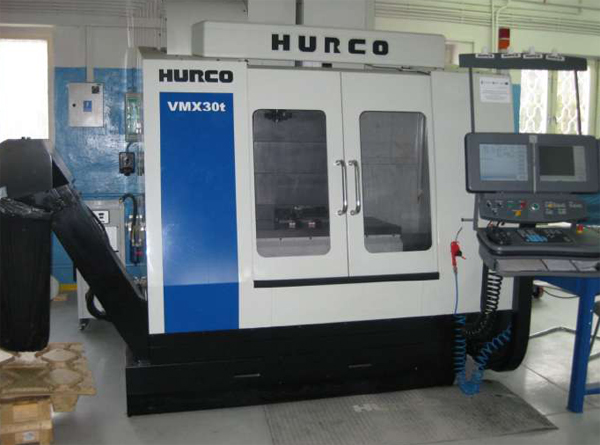

• HURCO VMX 30t
  • WorkRange: X400mm, Y250mm, Z250mm;

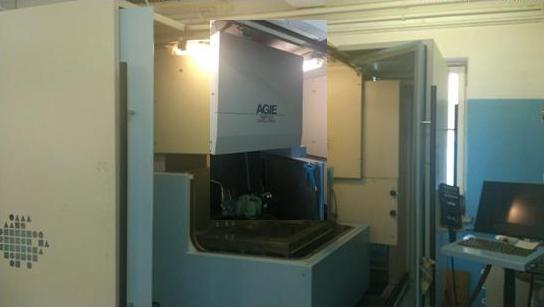

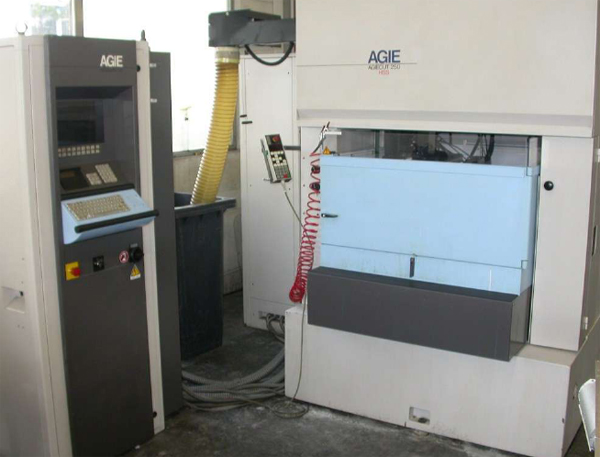

Electro-erosion machine

• AGIECUT EVOLUTION
  • Working area of: 800mm X 600mm X-500, Y-350, Z-250mm

Measuring Machine

• CNC CMM ABERLINK ZENITH too
  • PowerINSPECT; X 1500mm, Y 1000mm, Z 800 mm; 2500 kg;
  • Accuracy: VDI (U3) 0.0038 + L/250mm
  • Fast scanning up to 2000 points per second probe SP25M Renishaw

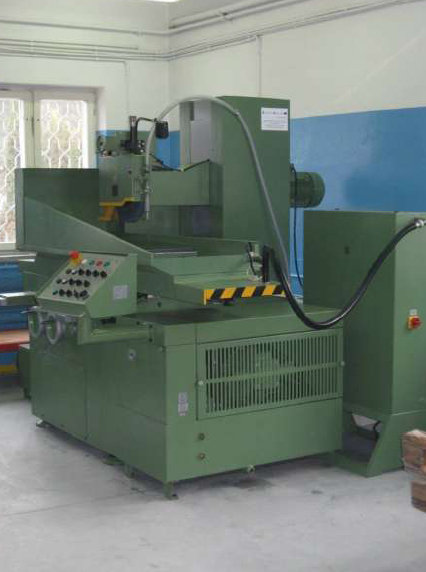

Surface grinder

• Borets - Model OSH–4080
  • X-800mm Y-400mm; Accuracy: L/800mm, Flatness: 0,004mm,
  • Paralllerism: 0,005mm, Ra: 0,16μm

RB-5VM/CS CNC SNK New Higt Speed Multii_Center

• Distance between columns: 2850 mm
• Table top: 5000x2500 mm
• Maximum table load: 15 000 kg
• Strokes:
  • Table longitudinal (X) 5250 mm
  • Cross-spindle (Y): 2900+AACst800 mm+ATCst100 mm
  • Spindle Collar (Z): 600 mm
  • Crossbeam (W): 1380 mm
• Feeds: (working/quick)
  • X axis (table longitudinal) 1-10 000 mm/min // 20 000 mm/min
  • Y axis (cross-spindle) 1-10 000 mm/min // 20 000 mm/min
  • Z axis (spindle collar-vertical) 1-8 000 mm/min // 8 000 mm/min
  • W axis ( crossbeam-vertical) 1-6 000 mm/min // 6 000 mm/min
• High rpm range 40-8 000
• CNC FANUC 31i system
• heads:
  • Vertical head 90˚ with the machine
  • Angular processing head 6 000 rpm
  • Heads automatic warehouse 3 workplaces

FSM 1406 DA30CN Droop & Rein

• Table top 3000x1400 mm
• Maximum table load 10 000 kg
• Strokes:
  • longitudinal (X) 2400 mm
  • cross-machine (Y) 1400 mm
  • headstock (Z) 1250 mm
  • move of spindle (W) 200 mm
  • headstock turn (B) +/-45˚
• Feeds: (working)
  • X axis (longitudinal) 3000 mm/min
  • Y axis (cross-machine) 3000 mm/min
  • Z axis (vertical) 3000 mmm/min
• rpm range 4 000
• CNC FIDIA C10 System

Hydraulic Press TRY-OUT BLISS-BRET type PHD1500, 5000x2500, 220kW Available from January 2018

• Maximal pressing force (downwards movement) 15 000 kN
• Maximal pressing force (upwards movement) 500 kN
• Maximal slider leap 1 400 mm
• Slider maximal distance from the table 2 200 mm
• Slider minimal distance from the table 800 mm
• Moveable table top 5 000 x 2 500 mm
• Slider board 5 000 x 2 500 mm
• Bottom pillow – general characteristic:
  • Strength 5 000 kN
  • Leap 300 mm
  • Pillow surface 4 350 x 1 850 mm
  • Pins allocation 150 x 150 mm
• Upper pillow – general characteristic:
  • Strength 2 500 kN
  • Leap 150 mm
  • Pillow surface 350 x 1 850 mm
  • Pins allocation 150 x 150 mm
• Moveable table top:
  • Height above the floor 550 mm
  • Leap 5 000 mm
  • Maximum weight of matrix 50 000 kg
• Siemens S7 control system - IM151 CPU Profinet (ET200S series)

Double-girder crane BUDTOR type BTD SILVERLINE

• Span 15,0 m
• Crane working load (SWL) 20 000 kg
• Number of winches 2
• Main winch working load 20 000 kg
• Auxiliary winch working load 10 000 kg
• Lift height 4,85 m (main) 5,23 m (auxiliary)
• Winch type ND08M4 (main) ND04M5 (auxiliary)

Crane girder ABUS type GM 5000.3 4/1 Hakenweg 6 m

• Span 10,50 m
• Crane working load 12 500 kg
• Number of winches 1
• Winch working load 12 500 kg
• Lift height 4,60 m
• Winch type ABUS rope drive class 4/1
